Termostaty kolumnowe image

Termostaty kolumnowe

The column thermostat is increasingly essential for the liquid chromatographic systems, as it provides the constant temperature of the chromatographic column. For performing the various tasks that require both cooling and heating, thermostats with column compartments of different size can be chosen. Each model is equipped with a leak detector.

JASCO CO-4061 block thermostat

Cooling and heating thermostat, which is suitable for thermostatting JASCO_LC4000_CO-4061both below and above room temperature, up to 100 oC. A chromatographic column of max. 20 cm can be placed into the standard column compartment, which length can be extended to 30 cm with an expansion kit.
With the help of the optional pre-heating block, the pre-thermostatted mixture reaches the column, thereby improving the separation. The instrument is equipped with a built-in control unit, the operation parameters can be set with the buttons. The functions of the instrument can be fully controlled by the JASCO ChromNAV2 software.

Specifications:

  • temperature range: room temperature – 15 – 100 oC
  • temperature accuracy: ±0.1 oC
  • column compartment dimensions: 27x6x3 cm (WxDxH)
  • max. column length: max. 20 cm, optionally max. 30 cm
  • number of columns: max 2 pcs
  • self diagnostics: temperature, solvent leakage
  • memory: 10 program
  • program function: max. 64 steps
  • dimensions: 30x47x15 cm (WxDxH), 10 kg


JASCO CO-4062 block thermostat

Cooling and heating thermostat, which is suitable for thermostatting both below and above room temperature, up to 100 oC. This thermostat is designed specifically for meeting the requirements of the rapid chromatography and UHPLC. In its column compartment maximum 6 chromatographic columns of 15 cm can be placed. The switch between the columns can be carried out with 1 or 2 switching valves built in the column compartment optionally. With the help of the optional pre-heating block, the mixture of the appropriate temperature reaches the column, thereby improving the separation. The instrument can be controlled with the buttons and the JASCO ChromNAV2 software.

Specifications:

  • temperature range: room temperature – 15 – 100 oC
  • temperature accuracy: ±0.1 oC
  • column compartment dimensions: 26×2,5×10.5 cm (WxDxH)
  • max. column length: max. 15 cm,
  • number of columns: 1 – 6 pcs
  • option: column switch valves
  • self diagnostics: temperature, solvent leakage
  • memory: 10 program
  • program function: max. 64 steps
  • dimensions: 30x47x15 cm (WxDxH), 10 kg

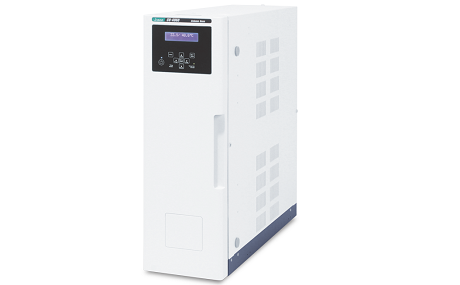

JASCO CO-4060 air-blow thermostat

Cooling and heating thermostat, which is suitable for the chromatographic tasks that require temperature both below and above room temperature, up to 80 oC. The large column compartment provides easy mounting and the even heat distribution. The rapid heat transfer are provided by the built-in mixing ventillator. In the column department of the instrument maximum 6 columns of 30 cm can be placed. A manual injector can be installed in the door of the thermostat. The instrument can be controlled independently with the built-in control unit or by the JASCO ChromNAV2 software.

Specifications:

  • temperature range: room temperature – 15 – 80 oC
  • temperature accuracy: ±0,1 oC
  • column compartment dimensions: 11×10.5×41 cm (WxDxH)
  • max. column length: max. 30 cm
  • number of columns: 1 – 6 pcs
  • self diagnostics: temperature, solvent leakage
  • memory: 10 program
  • program function: max. 64 steps
  • dimensions: 15x47x47 cm (WxDxH), 16 kg


JASCO CO-4065 air-blow thermostat

Cooling and heating air-blow thermostat with a large column compartment, it can be used up to 90 oC. In the column department of the instrument maximum 10 columns of 30 cm can be placed. It can be excellently used for column testing, method development and for thermostating columns of larger diameters, as well. A manual injector can be installed in the door of the thermostat. The switching between the columns is provided by the optionally installed switching valves. The instrument can be controlled independently with the built-in control unit or by the JASCO ChromNAV2 software.

Specifications:

  • temperature range: room temperature – 15 – 90 oC
  • temperature accuracy: ±0.1 oC
  • column compartment dimensions: 26x12x41 cm (WxDxH)
  • max. column length: max. 30 cm
  • number of columns: 1 – 10 pcs
  • option: column switch valves
  • self diagnostics: temperature, solvent leakage
  • memory: 10 program
  • program function: max. 64 steps
  • dimensions: 30x47x47 cm (WxDxH), 25 kg

JASCO RO-4068 reaction and column thermostat

Only heating reaction and column thermostat, which can be used for higher-temperature column thermostatting and for derivatization reactions up to 200 oC. In the column compartment of the instrument 25-cm-long column can be placed. The instrument can be controlled by the JASCO ChromNAV2 software.

Specifications:

  • temperature range: room temperature: + 10 – 200 oC
  • column compartment dimensions: 4,3x35x7,5 cm (WxDxH)
  • max. column length: max. 25 cm
  • number of columns: 1 db
  • self diagnostics: temperature, solvent leakage
  • dimensions: 30x47x15 cm (WxDxH), 12 kg
