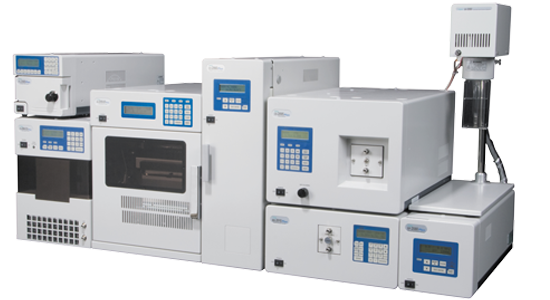

JASCO SFE/SFC/HPLC systemy image

JASCO SFE/SFC/HPLC systemy

The Japanese JASCO has been in the vanguard of the manufacturing of supercritical chromatographic systems that use supercritical fluid as a mobile phase since1985. Since then, the company has improved and optimized its systems. Thus, supercritical chromatographic (SFC), supercritical extraction (SFE) and HPLC tasks can be carried out. By using carbon dioxide as supercritical fluid, the separation and extraction can be achieved even at the near-room temperature of 31°C.

An SFE/SFC/HPLC system requires:

  • a pump for transferring carbon dioxide. It can also be used as a HPLC pump (SFE/SFC/HPLC)
  • an extraction thermostat, which can also be used as a column thermostat (SFE/SFC/HPLC)
  • microprocessor-controlled pressure regulator (SFE/SFC)
  • sample collector (SFE/SFC)
  • gradient composition options (SFE/SFC/HPLC)
  • extraction vessels, cells (SFE)
  • detectors (SFE/SFC/HPLC)
  • autosampler (SFC/HPLC)
  • control and data acquisition software (SFC/HPLC)


PU-2080-CO2

The PU-2080-CO2 pump is analytically programmable and it has a Peltier cooling pump head, which enables it to transfer the mobile phase in the SFE/SFC/HPLC system. In the case of using it as a HPLC pump, the cooling can be turned off. Gradient composition is possible with a supplemented PU-2080 pump. The PU-2080-CO2 pump uses the Slow-Suction – Quick Delivery (SSQD) method, also used with the JASCO HPLC pumps, for the transfer of the mobile phase. This method allows pulsation free, smooth transfer, thereby, achieving reproducible separation and extraction. The instrument has a built-in controller, which can be programmed with buttons or controlled with the JASCO ChromNav chromatographic software.

Specifications:

  • flow rate: 1 µl/min – 10 ml/min, recommended flow range: 0.2-7 ml/min
  • operation mode: constant flow rate or constant pressure
  • max. pressure: 50 MPa
  • presetted cooling temperature –10°C, cooling can be switched off
  • high pressure gradient mixing: with additional PU-2080 pump
  • programmable functions: flow rate, pressure, pressure limits, contact signals,
  • control of optional solvent selection valve, in connection with optional modifier pump setting of mobile phase composition 0 – 100% in 0.1% increments
  • memory: 10 program with 64 steps
  • self-diagnostics
  • wetted material:sapphire, ceramics, SS316, PEEK, polyethylene
  • dimensions: 23x43x32 cm, 22 kg.

PU-2086-CO2

The PU-2086-CO2 semi-preparative programmable pump has a water-cooled pump head, which enables it to transfer the mobile phase in the SFE/SFC/HPLC system. The recommended cooling temperature in the case of carbon dioxide mobile phase is -10°C. High-pressure gradient composition is possible with a supplemented PU-2086 pump. Due to the SSQD pumping mode and the specially designed pump head, it provides stable mobile phase delivery performance, even when using high-flow speeds. The instrument can be controlled with its built-in controller – with buttons – or with the JASCO ChromNav software.

Specifications:

  • flow rate: 1 µl/min – 20 ml/min, recommended flow rate: 1-15 ml/min
  • operation mode: constant flow rate or constant pressure
  • max. pressure: 30 MPa (to 15 ml/min), 25 MPa (more than 15 ml/min)
  • cooling: with circulator thermostate
  • high pressure gradient mixing: with additional PU-2086 pump
  • programmable functions: flow rate, pressure, pressure limits, contact signals,
  • control of optional solvent selection valve, in connection with optional modifier pump setting of mobile phase composition 0 – 100% in 0.1% increments
  • memory: 10 program with 64 steps
  • self-diagnostics
  • wetted materials: sapphire, ceramics, SS316, PEEK, polyethylene
  • dimensions: 15x58x12 cm, 11 kg.

Extraction thermostat

The extraction thermostat is used for providing fluid mixing and thermostating, and even injector thermostating can be achieved. When using SFE, extraction vessels can be placed into the thermostat, and in the case of SFC and HPLC applications, columns can be placed into it. This thermostat contains a static gradient mixer, a 6-port switching valve, 2 shut-off valves and a Rheodyne 7725i injector with a 20 µl loop.

Specifications:

  • temperature: room temperature-15°C – +80 °C
  • temperature accuracy: 0.1°C
  • max. column dimension: 25 x 2 cm

BP-2080 pressure regulator – back pressure regulator

Providing a stable pressure is the most important condition for the supercritical extraction and separation. This can be achieved with the BP-2080 pressure regulator, in which a thermostated needle of variable resistance provides the pressure control in the case of the SFE/SFC separations done with supercritical carbon dioxide. The high-speed vibration and thermostating of the needle prevent the potential needle blocks which can be caused by high viscosity or solid samples. The instrument has an own controller, and versus time, it is capable of pre-programmed changing of the pressure and temperature. A heated extractum drain can be connected to the BP-2080, which provides the heating of the sample after the separator valve, thereby, preventing the precipitation. For fraction collection, a 1-in-6-out switching valve and a fraction collector can be used. The valve can be controlled either with the ChromNav software or from the JASCO pump.

Specifications:

  • working range 1.0 – 50.0 MPa, settable in 0.1 MPa steps
  • pressure accuracy: ±2% or ±0.2 MPa (5 ml/min CO2)
  • usable supercritical fluid: CO2
  • dead volume: less than 10 µl
  • settable temperature range of valve: 35 – 80°C
  • usable flow rate range: 0.1-120 ml/min
  • programmable functions: pressure; temperature; contact sign
  • memory: 5 program with 64 steps
  • wetted materials: SS316, PEEK
  • dimensions: controller: 15x47x15 cm, ~5 kg valve unit: 15x40x45 cm, ~4.5 kg.

AS-2059-SF autosampler

With the 120 position – in its standard configuration – AS-2059-SF autosampler the sample dosing can be achieved both in the supercritical chromatographic system and in the HPLC system. The sampler can be used with variable and fix injection modes, as well. For samples that require thermostating, the AS-2059-SF autosampler with cooled and heated sample holder, supplemented with the TC-2059 Peltier thermostat, is recommended.

Specifications:

  • injection mode: részleges (variable) or fix loop loading
  • number of samples: 120 for 2 ml vial, 54 for 4 ml vial, 224 for 0.6 or 0.3 ml vial, 2 for 384 microplate
  • injectable sample volume: 0.1-100 µl standard, optionally: 1-1000 µl
  • sample loop: standard: 100 µl, optionally: 200, 500, 1000, 2000, 5000 µl
  • reproducibility: 0.5% RSD (fix loop 20 µl)
  • cross contamination: 0.01% (fix loop 5 µl)
  • maximum pressure: 30 MPa
  • temperature control: with TC-2059 Peltier termostate device 4-60 oC
  • wetted materials: stainless steel, PTFE, PEEK, ceramics
  • program function: max. 64 steps
  • memory: 10 program

Detectors

Diode-array, UV-Vis, circular dichroism HPLC detectors, supplemented with a special high-pressure cell, can be used for the detection of the separated substances. Equipped with the standard, high-sensitivity cell, the modules can be operated as HPLC detectors. Their specifications are identical with the ones listed at the HPLC detectors.

ChromNav

For the controlling of the SFC/SFE/HPLC system, the JASCO ChromNav chromatographic software can be used. It controls the various modules and provides complete chromatographic data processing. With the 3-dimensional data processing based on the spectra of the signals supplied by the JASCO MD-2010/2015/2018 diode-array detectors, peak identification and peak purity verification is possible. A spectrum library can be created from the spectra recorded during the detection. The software features are identical with the ones written at HPLC softwares.

» strona producenta »

A large number of accessories are available for the SFE/SFC/HPLC systems. These accessories can be used for carrying out a variety of extraction and chromatographic tasks. Extraction vessels of different size can be chosen for performing extraction and valves, valve-systems and fraction collectors are available for fraction collection. A separate fraction collector can be used for preparative supercritical chromatography.
